PRODUCT DETAILS
|
|
Part #:
|

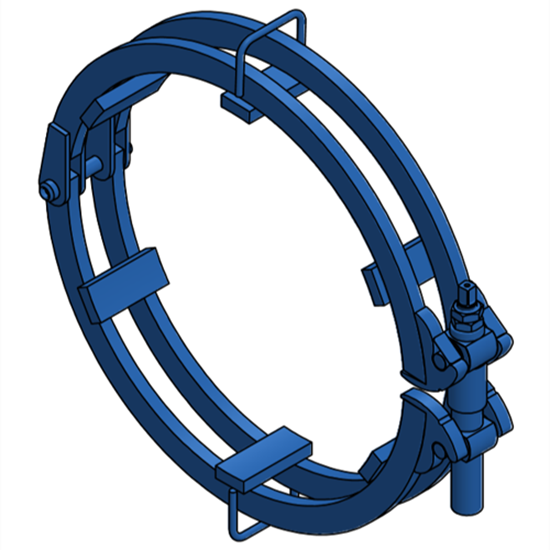

KC-28-R
|
|
Weight:
|
170 lbs (77 kg)
|
|
Clamp Material:
|
A36 Carbon Steel
|
|
Screw Assembly Material:
|
Screw: A311
Nuts: C1018
|
|
Ratchet Type:
|
Square Head, 7/8”
|
|
Ratchet Part #:
|
KC-RH-16-0.875
|
|
Screw assembly part number:
|
KC-SC-10-42
|
|
Grease type:
|
NLGI GC-LB
|
|
Operating temp range:
|
-13° F (-25° C) to +122° F (+50° C)
|
WARNING! 1. Do not use the K.C. alignment clamp as a lifting device. 2. K.C. alignment clamps are not to be used as a load bearing device. 3. A lift mechanism should not be attached to the clamp to lift the pipe. 4. Wedges should not be driven under the frame of the clamp in an attempt to reform the pipe as it may damage the clamp and void the warranty. 5. The clamp is not designed for the alignment of the tees, elbows, valves and other fittings. 6. The clamp should not be used with any type of device that is used to preheat the pipe prior to welding as this may result in failure of the clamp. 7. Do not use a mechanical advantage (such as a cheater bar) on the end of the ratchet handle.
